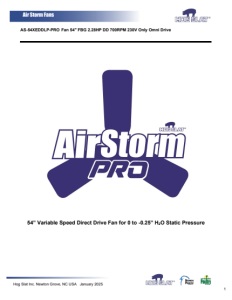

Hog Slat Inc. Newton Grove, NC USA January 2025 1 Air Storm Fans AS-54XEDDLP-PRO Fan 54" FBG 2.28HP DD 700RPM 230V Only Omni Drive 54” Variable Speed Direct Drive Fan for 0 to -0.25” H2O Static Pressure
Hog Slat Inc. Newton Grove, NC USA January 2025 2 Air Storm Fans Table of Contents GrowerSELECT General Page .................................................................................................................................2 Safety .........................................................................................................................................................................4 Warning Labels .......................................................................................................................................................4 Installation ...............................................................................................................................................................5 Operation Safety .....................................................................................................................................................5 Maintenance Safety ................................................................................................................................................5 Installation .................................................................................................................................................................5 Framing ...................................................................................................................................................................5 Assembly .................................................................................................................................................................7 Wiring and Electrical Installation ......................................................................................................................... 11 Pre-Operation Assessment .................................................................................................................................. 18 Operation ................................................................................................................................................................ 18 Maintenance ........................................................................................................................................................... 19 Troubleshooting .................................................................................................................................................... 19 Exploded Diagrams/Replacement Parts ............................................................................................................. 20 Hog Slat Limited Warranty.................................................................................................................................... 21 Performance ........................................................................................................................................................... 23 RPM CURVES ......................................................................................................................................................... 24
Hog Slat Inc. Newton Grove, NC USA January 2025 3 Air Storm Fans GrowerSELECT General Page General Installation Notes: Make sure that power is disconnected from system prior to servicing. Installation of this equipment and related OEM equipment should be in accordance with these instructions, OEM’s installation instructions and local codes (if applicable). Failure to follow specified instructions may cause damage to equipment and/or personal injury or death. Take special note of any Warnings or Safety Decals on the equipment and in manuals. Always wear protective clothing and any applicable Personal Protective Equipment (Safety Glasses and/or Ear Plugs) when working with the equipment. Discarded materials, equipment and boxes should be recycled in accordance with local and national codes. Safety Instructions: Read all safety messages in this manual and on equipment safety decals. Follow recommended precautions and safe operating practices. Ground all electrical equipment for safety. Ground all non-current carrying metal parts to guard against electrical shock. Always keep safety decals in good condition and replace missing or damaged decals.
Hog Slat Inc. Newton Grove, NC USA January 2025 4 Air Storm Fans Safety Warning Labels Warning Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety signs. Safety–Alert Symbol This is a safety–alert symbol. When you see this symbol on your equipment, be alert to the potential for personal injury. GrowerSelect equipment is designed to be installed and operated as safely as possible...however, hazards do exist. Safety decals should be read and understood thoroughly by individuals within the local area of the fan. Safety decals should be visible from both the front and back of the fan. Should a decal be missing or damaged, please contact Hog Slat Inc. for a free replacement: Hog Slat Inc. 206 Fayetteville St. Newton Grove, NC 28366 Toll Free: 800-949-4647 Local: 910-594-0219 The below safety decal should be represented and visible on both the front and back sides of the fan. This label is identified by the HSLABEL-080 part number in the lower right corner. WARNING – FLYING OBJECTS AND ROTATING PARTS Ensure fan guards are in place during operation. Securely tighten propeller to shaft to avoid slipping. Disconnect power supply for inspection or service when guards are removed and personnel are exposed to propeller. WARNING – HIGH VOLTAGE Disconnect electrical power before inspecting or servicing equipment unless maintenance instructions specifically states otherwise. Ground all electrical equipment for safety. All electrical wiring must be done by a qualified electrician in accordance with local and national electrical codes. Ground all non-current carrying metal parts to guard against electrical shock. With the exception of motor overload protection, electrical disconnects and over current protection are not supplied with the equipment.
Hog Slat Inc. Newton Grove, NC USA January 2025 5 Air Storm Fans Installation Prior to any installation product should be inspected for any damage caused during shipping. Any damage found should be documented and communicated to liable parties. Operation Safety When fan is in operation no attempt should be made to service or interact with parts from the fan. Any attempt to interact with fan parts while the fan is operating could result in injury. Inlet and exit guards and or shutters are in place to help prevent foreign objects from entering inside the outer perimeter of the housing. If maintenance to the fan is required, interrupt the source of power to the motor and allow propeller to come to a complete stop before moving forward with any efforts to service. Maintenance Safety Air Storm Fans are designed and built with operator safety in mind. Some safeguards must be disassembled or removed for the parts to be serviced or replaced. As this fan does have moving parts and is supplied with electrical power, steps must be taken to ensure safety around these presented hazards. READ THESE INSTRUCTIONS BEFORE SERVICE OR PART REPLACEMENT 1. Read and understand the operating manual before trying to install or operate Air Storm Fans. 2. Power supply should be turned OFF and LOCKED OUT for service to motor and electrical components. Use CAUTION in checking voltage or other procedures requiring power to be ON. 3. DO NOT attempt to bypass any safety features or devices to operate the fan. 4. Keep fan clean of all debris that may collect on the motor, prop, and any bearings, belts, or pulleys. 5. Use CAUTION in working around all moving parts of the fan. Fan guards or shutters must be in place before fan can be safely started and operational. Installation Framing The rough in opening for the fan is an exact measurement that accounts for the heads of fasteners and openings for fan. Ensure there is proper clearance for installation or rough opening may require larger measurements. Fan Model Rough Opening (Width x Height) 54” Fiberglass Exhaust Fan 58” X 60.5” (147.32 cm x 153.67 cm) See Diagram on Next page for Wall Thickness Specific Dimensions
Hog Slat Inc. Newton Grove, NC USA January 2025 6 Air Storm Fans ! In some applications the slope on the fan housing requires exterior finish material to extend 3/4" below the top of the rough opening!
Hog Slat Inc. Newton Grove, NC USA January 2025 7 Air Storm Fans Assembly 1. Remove packaging from Fan and cone if applicable. • Locate hardware kit(s) and supplied literature and store for later use. • Ensure not to damage the fan or components during this step. 2. Remove shutter from fan housing then from the inside of the building insert fan shroud into rough opening. 3. Using supplied #14 Sheet Metal Screws (805060), secure housing to framework. • A total of 8 fasteners are recommended to completely secure fan. Each corner should be secured along with the midpoint between each corner. • Ensure adequate room is allowed to the inside of the fasteners for the shutter to mount flush to the fan housing.
Hog Slat Inc. Newton Grove, NC USA January 2025 8 Air Storm Fans After the fan is mounted to the wall verify that the prop hub is flush with end of the motor shaft and motor is mounted as far forward as possible. Spin prop by hand and ensure correct prop clearance. 4. Insert cone onto fan housing orifice. • Align predrilled holes in cone with predrilled holes in housing and secure. • Slotted holes are provided in the cone for easier installation. • Assemble as shown below with the flat head bolts, lock nuts, and fender washers. • ! FLAT HEAD BOLTS SHOULD BE INSTALLED FLUSH IN HOUSING WITH LOCK NUTS AND WASHER ON THE EXTERIOR OF THE CONE!
Hog Slat Inc. Newton Grove, NC USA January 2025 9 Air Storm Fans 4 Place the fan exit guard onto the outlet flange of the cone as shown below. • Secure with supplied fasteners with the bolt head facing the building and flange nuts facing away from fan. 5 Using a 1/2” drill bit, drill a relief hole in the housing at desired location for entry of power cord. • ! ENSURE HOLE LOCATION WILL NOT ALLOW POWER CORD TO APPROACH THE PATH OF THE ROTATING FAN BLADE OR SHUTTER ACTION! • Also ensure hole location will not allow excessive entry of water during adverse weather conditions • Image shown is recommendation only! Actual point of power entry should be determined by installer. 6 A second relief hole is recommended in most applications in the bottom of the housing to allow drainage of any liquid that could accumulate in the bottom of the housing. This hole should be drilled in base of the housing centered between the vertical support and orifice exit.
Hog Slat Inc. Newton Grove, NC USA January 2025 10 Air Storm Fans 7 From the interior of the house, use WS-001 Hardware package contents to secure the shutter to the fan inlet opening. Place shutter into fan inlet opening. Ensure shutter is oriented so shutter will swing upward when air flows from the interior of the house through the fan to the exterior of the house. PRE DRILLED HOLES ARE PROVIDED IN THE HOUSING FOR THE BOTTOM 2 RETAINER CLIPS TO ENSURE SHUTTER IS CENTERED. EACH PRE DRILLED HOLE IS ACCOMPANIED BY A DECAL NOTING HOLE DESIGN FUNCTION. 8 Attach (8) shutter retainer clips with aluminum washer and self-tapping screw to fan housing. Space the retainer clips evenly between securing screws applied in step 2. THIS COMPLETES THE HOUSING ASSEMBLY OF THE FAN
Hog Slat Inc. Newton Grove, NC USA January 2025 11 Air Storm Fans Wiring and Electrical Installation General Installation Notes: Make sure that power is disconnected from system prior to servicing. Installation of this equipment and related OEM equipment should be in accordance with these instructions, OEM’s installation instructions and local codes (if applicable). Failure to follow specified instructions may cause damage to equipment and/or personal injury or death. Take special note of any Warnings or Safety Decals on the equipment and in manuals. Always wear protective clothing and any applicable Personal Protective Equipment (Safety Glasses and/or Ear Plugs) when working with the equipment. Discarded materials, equipment and boxes should be recycled in accordance with local and national codes. Safety Instructions: Read all safety messages in this manual and on equipment safety decals. Follow recommended precautions and safe operating practices. Ground all electrical equipment for safety. Ground all non-current carrying metal parts to guard against electrical shock. ! WARNING ! Installation, operation, and maintenance must be performed by qualified personnel. All work should adhere strictly to the National Electrical Code and National Fire Protection Association standards. Additional Notes are below • Connecting any voltage other than nameplate voltage can cause permanent damage to the unit. • Insulate all connections carefully to prevent grounding or short circuits. Reinstall all conduit and terminal box covers. To avoid overheating or loss of performance, voltage to the motor control unit must be within plus or minus 10% of the nameplate voltage. • Make sure the unit is electrically grounded and that proper electrical installation, wiring, and controls are used consistent with local and national electric codes.
Hog Slat Inc. Newton Grove, NC USA January 2025 12 Air Storm Fans • Code requirement differ from state to state. Install equipment using qualified electricians in accordance with applicable codes and ordinances in your area in accordance with NEC. • Make sure there are no unusual noises or vibrations when the motor in running. • Avoid contact with energized circuits or rotating parts. • All aspects of the installation must conform to the applicable requirements of the NEC as well as local codes. • Spinning the shaft will induce potentially damaging current to the drive and connections. • Always disconnect electrical power at the fuse box or circuit breaker panel before handling electrical connections or performing maintenance on this unit. Allow the motor to come to a complete stop and wait ONE (1) MINUTE. This allows the capacitors to discharge any residual voltage. • Double-check to make sure that electrical power is removed and that it cannot be turned on while you are working on the equipment. • A poor electrical connection can overheat and cause terminal and/or terminal board failures. Examine the connection carefully for any signs of physical deterioration or loose fit to the motor terminal block. • If there is evidence of deterioration or loose fit, remove the terminals from the lead wire then connect the lead wires directly to the motor terminal block wiring terminals. • Care must be taken to assure connections are made to the proper terminals and adequate electrical clearances are maintained. ! NOTICE ! • The motor and control are assembled as a set. There are no serviceable components in the motor or control. • To prevent permanent damage to the unit, only apply nameplate voltage. • Do not strike the motor shaft with a hammer or other tool as this may damage bearings.
Hog Slat Inc. Newton Grove, NC USA January 2025 13 Air Storm Fans The IP55 rating is ensured when all conduits to the motor are used and connected properly to incoming electrical power and signal lines When installing motor a drip loop is recommended to ensure IP55 rating Prop must be secured during installation. Shaft rotation generates voltage at terminals, even when power is disconnected. RATING All associated documentation applies to 2.28HP model designed to operate from 1Φ, 230 Vac, 60/50Hz. Rated Shaft Output Power: 2.28HP Rated Speed: 700 RPM Unloaded (In application rated speed: 618) Rated System Input Current: 8.5 Amps Protection and Faults: Locked Rotor Fault: Output Overcurrent: If the motor draws more than 8.5 Amps the drive will decrease RPM and limit to 8.3 Amps until the amp load decreases. Once load decreases motor will return to desired RPM Output Wattage Limit: If motor wattage exceeds 2000 Watts the drive will decrease RPM and limit motor to an output below 2000 Watts. Once load decreases motor will return to desired RPM Over Temperature: If the motor temperature exceeds 97°C (206.6°F) the motor will reduce RPM. Motor returns to selected speeds after temperature drops. The motor may experience multiple speed decreases if the temperature does not fall between temperature checks (Approximately 60 second interval). Over Voltage/Under Voltage: If the drive experiences an over or under voltage then it will shut off the motor to prevent damage. The drive board will check for
Hog Slat Inc. Newton Grove, NC USA January 2025 14 Air Storm Fans the appropriate voltage every 3 seconds. If the voltage returns to appropriate levels the drive will restart the motor. Failed Start Protection: If the motor fails to start it will attempt to restart after approximately 30 seconds. If the motors experiences subsequent failures it will take 15 seconds longer for every failure experienced up to a maximum of 2 minutes. Ex. If a motor fails to start 3 times it will wait 30 seconds after the first failure, then 45 seconds after the second, then 60 seconds after the third before it attempts to start again. Electrical Installation The fan is intended to be operated from a typical single-phase 230 Vac 60 or 50 Hz line input. The minimum and maximum input voltage range is shown below. Full rated output power is guaranteed between the Minimum Full Performance Voltage and Maximum Operating Voltage. Line Input Minimum Operating Voltage Minimum Full Performance Voltage Maximum Operating Voltage 230 Vac 180 Vac 187 Vac 253 Vac AC Connections Frequency The units will operate at 60/50Hz +/- 5% Special Conditions Related to In-Field Wiring of Air Storm 54” Omni Drive.
Hog Slat Inc. Newton Grove, NC USA January 2025 15 Air Storm Fans Logic Board Start control Motor starts when power is applied and DC input voltage signal reaches .9V in 010v operation or 9.3V in 10-0V operation. For analog input the SPEED_SEL dip switch should be in ON position. Motor starts when set to fixed speed mode and power is applied to drive. ! Motor must have a minimum of 1 minute of off time before restarting. Failure to maintain 1 minute of off time before restarts will void warranty ! Adjustable Inputs Rotary switch SW1 Sets motors maximum speed in fixed and variable speed mode. POS 0 1 2 3 4 5 6 7 8 9 RPM 400 433 466 500 533 566 600 633 667 700 Set to position 4, 533 RPM by default.
Hog Slat Inc. Newton Grove, NC USA January 2025 16 Air Storm Fans Dip Switches S1 # Switch Label Description ↑ ↓ 1 VOLT_SET Signal Mode 0-10V 10-0V 2 SPEED_SET Variable Speed or Fixed Speed Fixed Speed Variable Speed 3 DIR_SET Rotation Direction, Intake Side Counter Clockwise Clockwise Note: Counterclockwise is the default rotation for all Omni Drive fans. DIR_SET should not be changed. Input Signal TB1 Used for 0-10V signal input. When in use, SPEED_SET should be set to ↓ position Logic Board Layout Fixed Speed Set Up (On/Off) For fixed speed operation DIP switch positions should be as follows: DIR_SPEED: ↑, SPEED_SET: ↑, VOLT_SET: ↑ Rotary switch position will set fixed speed RPM
Hog Slat Inc. Newton Grove, NC USA January 2025 17 Air Storm Fans Variable Speed Set Up (0-10/10-0 Voltage Control) For variable speed operation DIP switch position should be as follows: 0-10V: DIR_SPEED ↑, SPEED_SET ↓, VOLT_SET ↑ 10-0V: DIR_SPEED ↑, SPEED_SET ↓, VOLT_SET ↓
Hog Slat Inc. Newton Grove, NC USA January 2025 18 Air Storm Fans The rotary switch will set the maximum speed in variable speed mode. To prevent the motor from operating in a limited state the motor should be set to 633 RPM. ! PROPER SAFTEY MEASURES SHOULD BE USED WHEN ADJSUTING SPEED. REMOVE POWER BEFORE ACCESSING CONTROL INPUTS. ALWAYS OPERATE FAN WITH GUARDS AND PROTECTIVE EQUIPMENT IN PLACE ! Pre-Operation Assessment Before beginning fan operation, please follow the below checklist to ensure that: ✓ Fan power cord securely connected to a good power supply. ✓ All safety labels are visible to personnel that will work in the area. ✓ Exit wire guard and inlet shutter are in place and secured to the fan housing. ✓ No foreign objects are protruding through the fan housing. Operation At all times during operation, fan orifice should be free of debris. In the event any component of the fan is compromised, discontinue use immediately and contact your local Hog Slat representative.
Hog Slat Inc. Newton Grove, NC USA January 2025 19 Air Storm Fans Maintenance In order to begin any maintenance or service to the fan, power must be turned OFF and all moving parts must come to a complete STOP before accessing. All parts inside of the fan housing are accessed by removing the exit wire guard and inlet shutter. Once service is complete, clean excessive build-up from parts. Excessive dust and dirt on parts can cause vibration in the propeller and overheating of the motor. Before beginning operation again, ensure that all safeguards are back in place and all foreign objects are free from the area. DURING MAINTENANCE AND OPERATION THE FOLLING MUST BE MAINTAINED TO ENSURE PROPER PERFORMANCE AND TO EXTEND USABLE COMPONENT LIFE. Troubleshooting Trouble Possible Cause(s) Corrective Action Excessive noise Worn motor bearing. Replace Damage to fan blade Replace prop Loose fasteners on motor or housing Tighten fasteners Excessive vibration Fan blade is out of balance due to dirt build-up. Clean entire unit Fan blade is out of balance due to damage Replace prop Insufficient airflow Intake or exhaust guards clogged with debris Clean entire unit Intake or exhaust blocked by foreign object Remove object from airflow path Fan won’t operate Open power supply circuit. Check wiring and reset circuit breaker Defective motor Reset motor, repair, or replace Motor overheats and nuisance trips Improper airflow due to clogged Inlet/Outlet Clean entire unit Motor or Fan prop has excessive debris build-up Clean entire unit
Hog Slat Inc. Newton Grove, NC USA January 2025 20 Air Storm Fans Exploded Diagrams/Replacement Parts Item Key Replacement Part Number Description 1 HS902-3 Guard 68" For 54" Air Storm Fan 2 AS-54206 Cone 54" Poly Air Storm 3 HSFP-5433S Prop 3 Blade 54" Diameter SS Direct Drive 1" Hub 4 HS9210 Motor/Drive Combo 2.28 Horsepower Variable Speed 1PH 230V 60Hz 5 AS-54X310A Mount Motor Stainless 54" X Frame 6 HS901-6A Shutter PVC 57" X 59" Trimmed Edge N/S WS-HW1 Hardware Kit Shutter Retainer 8ct. N/S WS-HW4X Hardware Kit Cone Mounting 54" Fan For OSHA compliant guards, contact your local Hog Slat representative. Omni Drive motor is only compatible with HSFP-5433S prop. DO NOT use props designed for belt drive fans!
Hog Slat Inc. Newton Grove, NC USA January 2025 21 Air Storm Fans Hog Slat Limited Warranty Hog Slat warrants products to be free from defects in material or workmanship for a period of twenty-four (24) months from the date of original purchase. Hog Slat will credit, repair, or replace, at its option any product or component deemed defective within this time period. Labor costs associated with the replacement or repair of the product are not covered by the Seller/Manufacturer. Component Specific Coverage (Applies only to components installed complete fan assemblies) Fan Housing, Cone, Damper Panels (Excludes PVC Shutter) (Plastic) Term: (5) Years Fan Housing, Cone (Fiberglass) Term: Limited Lifetime Propeller (Fiberglass) Term: (3) Years OMNI ECTM Motor/Drive Term: (3) Years Direct Drive Fan Motors Term: (3) Years Conditions and Limitations 1. The product must be installed by and operated in accordance with the instructions published by the Seller/Manufacturer or Warranty will be void. 2. Warranty is void if all components are not original equipment supplied by the Seller/Manufacturer. 3. This product must be purchased from and installed by an authorized retailer/distributor or certified representative thereof or the Warranty will be void. 4. Malfunctions or failure resulting from misuse, abuse, negligence, alteration, accident, or lack of proper maintenance shall not be considered defects under the Warranty. 5. This Warranty applies only to components/systems for the care of poultry and livestock. Other applications in industry or commerce are not covered by this Warranty. 6. This Warranty applies only to the Original Purchaser of the product. The Seller/Manufacturer shall not be liable for any Consequential or Special Damage which any purchaser may suffer or claim to suffer as a result of any defect in the product. “Consequential” or “Special Damages” as used herein include, but are not limited to, lost or damaged products or goods, costs of transportation, lost sales, lost orders, lost income, increased overhead, labor and incidental costs and operational inefficiencies. THIS WARRANTY CONSTITUTES THE SELLER/MANUFACTURER’S ENTIRE AND SOLE WARRANTY AND THIS MANUFACTURER EXPRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, EXPRESS AND IMPLIED WARRANTIES AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSES SOLD AND DESCRIPTION OR QUALITY OF THE PRODUCT FURNISHED HEREUNDER. Hog Slat Retailers/Distributors are not authorized to modify or extend the terms and conditions of this Warranty in any manner or to offer or grant any other warranties for GrowerSelect products in addition to those terms expressly stated above. An officer of Hog Slat must authorize any exceptions to this Warranty in writing. The Seller/Manufacturer reserves the right to change models and specifications at any time without notice or obligation to improve previous models. This equipment must be installed in accordance with all State and Local Codes and applicable Regulations which should be followed in all cases. Authorities having jurisdiction should be consulted before installations are made.
Hog Slat Inc. Newton Grove, NC USA January 2025 22 Air Storm Fans THIS PAGE INTENTIONALLY LEFT BLANK
Hog Slat Inc. Newton Grove, NC USA January 2025 23 Air Storm Fans Performance Hog Slat Inc. takes great pride in supplying our customers with fans that meet or exceed their performance numbers. This is achieved by testing fans from the production line and continually working to maintain consistency in test data. Data taken from BESS Labs Test 24064
Hog Slat Inc. Newton Grove, NC USA January 2025 24 Air Storm Fans RPM CURVES 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 15000 20000 25000 30000 35000 40000 400 450 500 550 600 650 700 cfm/Watt cfm rpm -0.05" H2O Airflow (cfm) 0.0 5.0 10.0 15.0 20.0 25.0 30.0 13000 18000 23000 28000 33000 38000 400 450 500 550 600 650 700 cfm/Watt cfm rpm -0.10" H2O Airflow (cfm) Efficiency (cfm/Watt)
Hog Slat Inc. Newton Grove, NC USA January 2025 25 Air Storm Fans
Hog Slat Inc. Newton Grove, NC USA January 2025 26 Air Storm Fans Voltage Tables 0-10 10-0 rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm 0-0.9 9.1-10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 9 400 17400 400 17400 400 17400 400 17400 400 17400 400 17400 400 17400 400 17400 400 17400 400 17400 2 8 440 20700 430 20000 430 20000 430 20000 420 19400 420 19400 410 18400 410 18400 400 17400 400 17400 3 7 480 23200 470 22500 460 21900 450 21300 440 20700 430 20000 430 20000 420 19400 410 18400 400 17400 4 6 510 25100 500 24600 490 23900 480 23200 460 21900 450 21300 440 20700 430 20000 410 18400 400 17400 5 5 550 27100 530 26250 520 25700 500 24600 480 23200 470 22500 450 21300 430 20000 420 19400 400 17400 6 4 590 29000 570 28500 550 27100 530 26250 500 24600 480 23200 460 21900 440 20700 420 19400 400 17400 7 3 630 32000 600 29700 570 28500 550 27100 530 26250 500 24600 480 23200 450 21300 420 19400 400 17400 8 2 650 32500 630 32000 600 29700 580 26900 550 27100 520 25700 490 23900 460 21900 430 20000 400 17400 9-10 1-0 650 32500 650 32500 630 32000 600 29700 570 28500 530 26250 500 24600 470 22500 430 20000 400 17400 0-10 10-0 rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm 0-0.9 9.1-10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 9 400 13500 400 13500 400 13500 400 13500 400 13500 400 13500 400 13500 400 13500 400 13500 400 13500 2 8 440 17300 430 16400 430 16400 430 16400 420 15400 420 15400 410 14500 410 14500 400 13500 400 13500 3 7 480 20700 470 19800 460 19000 450 18000 440 17300 430 16400 430 16400 420 15400 410 14500 400 13500 4 6 510 22900 500 22300 490 21400 480 20700 460 19000 450 18000 440 17300 430 16400 410 14500 400 13500 5 5 550 25600 530 24500 520 23700 500 22300 480 20700 470 19800 450 18000 430 16400 420 15400 400 13500 6 4 590 27900 570 26800 550 25600 530 24500 500 22300 480 20700 460 19000 440 17300 420 15400 400 13500 7 3 630 29500 600 28400 570 26800 550 25600 530 24500 500 22300 480 20700 450 18000 420 15400 400 13500 8 2 650 30900 630 29500 600 28400 580 27400 550 25600 520 23700 490 21400 460 19000 430 16400 400 13500 9-10 1-0 650 30900 650 30900 630 29500 600 28400 570 26800 530 24500 500 22300 470 19800 430 16400 400 13500 0-10 10-0 rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm 0-0.9 9.1-10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 9 400 8600 400 8600 400 8600 400 8600 400 8600 400 8600 400 8600 400 8600 400 8600 400 8600 2 8 440 12900 430 11700 430 11700 430 11700 420 10500 420 10500 410 9300 410 9300 400 8600 400 8600 3 7 480 17200 470 16200 460 15100 450 1400 440 12900 430 11700 430 11700 420 10500 410 9300 400 8600 4 6 510 20000 500 19200 490 18100 480 17200 460 15100 450 1400 440 12900 430 11700 410 9300 400 8600 5 5 550 23400 530 22100 520 21000 500 19200 480 17200 470 16200 450 1400 430 11700 420 10500 400 8600 6 4 590 26200 570 24900 550 23400 530 22100 500 19200 480 17200 460 15100 440 12900 420 10500 400 8600 7 3 630 28100 600 27100 570 24900 550 23400 530 22100 500 19200 480 17200 450 1400 420 10500 400 8600 8 2 650 29500 630 28100 600 27100 580 25500 550 23400 520 21000 490 18100 460 15100 430 11700 400 8600 9-10 1-0 650 29500 650 29500 630 28100 600 27100 570 24900 530 22100 500 19200 470 16200 430 11700 400 8600 0-10 10-0 rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm rpm cfm 0-0.9 9.1-10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 9 400 3800 400 3800 400 3800 400 3800 400 3800 400 3800 400 3800 400 3800 400 3800 400 3800 2 8 440 8500 430 7300 430 7300 430 7300 420 6100 420 6100 410 4850 410 4850 400 3800 400 3800 3 7 480 13000 470 11900 460 10800 450 9600 440 8500 430 7300 430 7300 420 6100 410 4850 400 3800 4 6 510 16100 500 15100 490 14000 480 13000 460 10800 450 9600 440 8300 430 7300 410 4850 400 3800 5 5 550 20000 530 18100 520 17100 500 15100 480 13000 470 11900 450 9600 430 7300 420 6100 400 3800 6 4 590 23600 570 21900 550 20000 530 18100 500 15100 480 13000 460 10800 440 8300 420 6100 400 3800 7 3 630 26900 600 25200 570 21900 550 20000 530 18100 500 15100 480 13000 450 9600 420 6100 400 3800 8 2 650 27900 630 26900 600 25200 580 22800 550 20000 520 17100 490 14000 460 10800 430 7300 400 3800 9-10 1-0 650 27900 650 27900 630 27100 600 25200 570 22300 530 18600 500 14700 470 11900 430 7300 400 3800 Setting 0 Setting 3 Setting 2 Setting 1 Setting 0 -0.15" H2O Signal Voltage Setting 9 Setting 8 Setting 7 Setting 6 Setting 5 Setting 4 Setting 3 Setting 2 Setting 1 -0.10" H2O Signal Voltage Setting 9 Setting 8 Setting 7 Setting 6 Setting 5 Setting 4 -0.05" H2O Signal Voltage Setting 9 Setting 8 Setting 7 Setting 6 Setting 5 Setting 4 Setting 3 Setting 2 Setting 1 Setting 0 -0.20" H2O Signal Voltage Setting 9 Setting 8 Setting 7 Setting 6 Setting 5 Setting 4 Setting 3 Setting 2 Setting 1 Setting 0
Hog Slat Inc. Newton Grove, NC USA January 2025 27 Air Storm Fans Fan Speed Based on Voltage Signal
Hog Slat Inc. Newton Grove, NC USA January 2025 28 Air Storm Fans Hog Slat, Inc. PO Box 300 Newton Grove, NC 28366 Phone: (910) 594-0219 Fax: (910) 594-1392 www.hogslat.com Copyright © 2019 by Hog Slat, Inc. Part Number: HSManual-347 Rev A1 HSART-581 Market: Hog & Poultry
