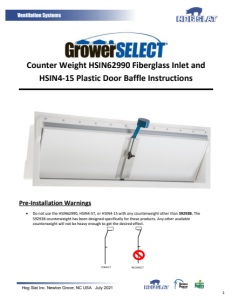

Hog Slat Inc. Newton Grove, NC USA July 2021 1 Ventilation Systems Counter Weight HSIN62990 Fiberglass Inlet and HSIN4-15 Plastic Door Baffle Instructions Pre-Installation Warnings • Do not use the HSIN62990, HSIN4-5T, or HSIN4-15 with any counterweight other than 59293B. The 59293B counterweight has been designed specifically for these products. Any other available counterweight will not be heavy enough to get the desired effect.
Hog Slat Inc. Newton Grove, NC USA July 2021 2 Ventilation Systems Overview The HSIN62990 counterweight inlet is the improved replacement for the legacy 62990 wall inlet. The inlet is made of a more durable door and a lighter, more precisely manufactured frame. It is assembled in a way that allows better sealing. The HSIN4-15 baffle door (replacement for 59296-1) does not have a fiberglass frame and is designed to fit directly into the wall. The inlet’s maximum CFM at a .125” H2O static pressure is about 2400 CFM. HSIN62990 Parts List Parts List Item Part Number Description Quantity 1 59295 Fiberglass Housing 1 2 HSIN4-5T Inlet Door with 59294 Bracket 1 3 59293B Weight Arm Heavy Long 1 4 HS612A 1/4-20 Plastic Knob 1 5 9705090500 Screw Self Drilling 10-16 X 3/4" 12 6 80504 Screw White 10 X 1" Steel 10
Hog Slat Inc. Newton Grove, NC USA July 2021 3 Ventilation Systems HSIN4-15 Parts List Parts List Item Part Number Description Quantity 1 HSIN4-13 Inlet Door 1 2 HSIN4-4 End Cap 2 3 60888 Snap-In Plastic Rivets 8 4 59294 Stainless Steel Bracket 1 5 60883 8-32 Nylon Insert Lock Nut 4 6 60884 Phillips Head Screw 8-32 X 1 1/2'' 4 7 HSI1-11R Brush Seal, 12" Strip 2 8 59293B Counter Weight (Sold Separate) 1 Framing Dimensions: Frame Front View (Figure 4) Table 3: Frame Dimensions Part Number A B HSIN62990 13 ½” 46 ½” HSIN4-15 13” 48 ¼”
Hog Slat Inc. Newton Grove, NC USA July 2021 4 Ventilation Systems This equipment must be installed in accordance with all State and Local Codes and applicable Regulations which should be followed in all cases. Authorities having jurisdiction should be consulted before installations are made. Hog Slat, Inc. PO Box 300 Newton Grove, NC 28366 Phone: (910) 594-0219 Fax: (910) 594-1392 www.hogslat.com Copyright © 2021 by Hog Slat, Inc Part Number: HSMANUAL-257 Rev A1 Market: Hog HSART-215 Revision IR
