AirStorm™ 54" Fan without Cone

Sorry - this product is no longer available

The 54" AirStorm fiberglass exhaust fan includes fan unit and matching PVC shutter. REQUIRED discharge cone purchased separately.

Manufacturer: Airstorm™

SKU: AS-54EBDLP

$1,435.61

Qty:

Dependable and powerful fans are the engines driving your ventilation systems. AirStorm™ fiberglass fans deliver consistent and reliable air flow to your poultry and hog farms.

Model	Description	Shutter	Rough Opening	RPM	Drive	Speed	HP
AS-54EBDLP	54" Fan	Plastic	58" x 60-1/2"	1725	Belt	Single	1-1/2

**Dischage cone (sold separately) is REQUIRED for safe operation and can be purchased here.


A high service factor 1-1/2" hp. motor powers the AirStorm 54" fan. The high S.F. rating provides protection from motor failures caused by varying rural electrical voltage. Why is Service Factor important? See more... Stainless steel motor mounts and hardware provide superior corrosion resistance.	Self-adjusting belt tensioner automatically maintains correct belt tightness. Link style belt improves performance and reduces replacement costs. One-inch shaft with permanently lubricated ball bearings preventing damage from dust contamination. Motor-matched, stainless steel props outlast plastic or aluminum.

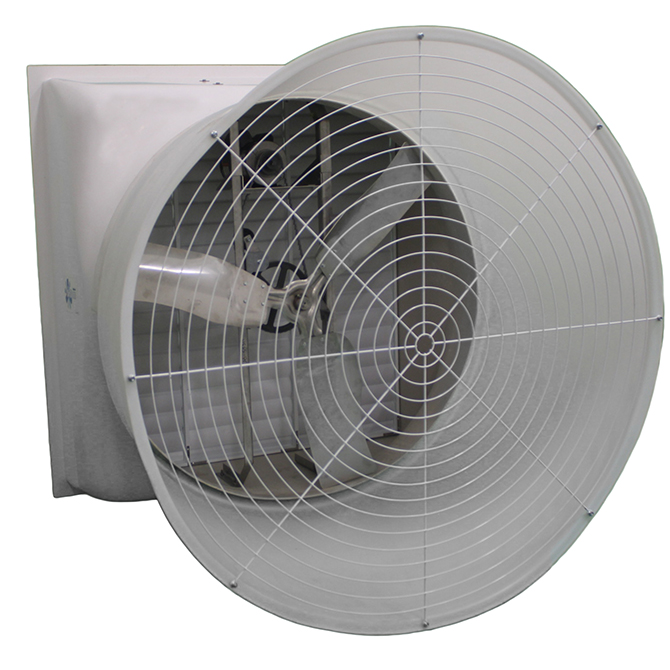

White PVC shutters feature full length, spring steel rods -- instead of plastic pins in the ends -- which lock into a heavy PVC frame with reinforced corners. True airfoil shutter vanes reduce air drag. *This shutter is included with the fan	Shown with the poly discharge cone that is REQUIRED for safe operation. Discharge cone must be purchased separately here. Resin transfer fiberglass housings molded with UV stabilizers to last in the harshest environmental conditions. Heavy-duty fan guards with baked on finish. Smooth interior and exterior are easier to wash. See RELATED PRODUCTS below to add discharge cone.

MODEL	BESS LAB TEST #	CFM 0.0"	CFM/Watt @0.00" SP	CFM 0.05"	CFM/Watt @0.05" SP	CFM 0.10"	CFM/Watt @0.10" SP	CFM .0.15"	CFM/Watt @0.15" SP
W/cone	14570	27,700	20.0	26,400	18.3	24,600	16.5	22,800	14.8
W/ Cone & 3 phase motor	14577	28,200	20.6	26,600	18.9	25,100	16.8	23,200	15.2

GrowerSELECT® AirStorm™ 54" Fiberglass Fan Installation and Operation Manual
GrowerSELECT® AirStorm™ 54" Fiberglass Fan Warranty Information

*Shipping charges at checkout are an estimate only. You will be contacted with an accurate freight charge before your order is processed.

Overview
CA Prop 65 Warning
Reviews
Contact Us

Dependable and powerful fans are the engines driving your ventilation systems. AirStorm™ fiberglass fans deliver consistent and reliable air flow to your poultry and hog farms.

Model	Description	Shutter	Rough Opening	RPM	Drive	Speed	HP
AS-54EBDLP	54" Fan	Plastic	58" x 60-1/2"	1725	Belt	Single	1-1/2

**Dischage cone (sold separately) is REQUIRED for safe operation and can be purchased here.


A high service factor 1-1/2" hp. motor powers the AirStorm 54" fan. The high S.F. rating provides protection from motor failures caused by varying rural electrical voltage. Why is Service Factor important? See more... Stainless steel motor mounts and hardware provide superior corrosion resistance.	Self-adjusting belt tensioner automatically maintains correct belt tightness. Link style belt improves performance and reduces replacement costs. One-inch shaft with permanently lubricated ball bearings preventing damage from dust contamination. Motor-matched, stainless steel props outlast plastic or aluminum.

White PVC shutters feature full length, spring steel rods -- instead of plastic pins in the ends -- which lock into a heavy PVC frame with reinforced corners. True airfoil shutter vanes reduce air drag. *This shutter is included with the fan	Shown with the poly discharge cone that is REQUIRED for safe operation. Discharge cone must be purchased separately here. Resin transfer fiberglass housings molded with UV stabilizers to last in the harshest environmental conditions. Heavy-duty fan guards with baked on finish. Smooth interior and exterior are easier to wash. See RELATED PRODUCTS below to add discharge cone.

MODEL	BESS LAB TEST #	CFM 0.0"	CFM/Watt @0.00" SP	CFM 0.05"	CFM/Watt @0.05" SP	CFM 0.10"	CFM/Watt @0.10" SP	CFM .0.15"	CFM/Watt @0.15" SP
W/cone	14570	27,700	20.0	26,400	18.3	24,600	16.5	22,800	14.8
W/ Cone & 3 phase motor	14577	28,200	20.6	26,600	18.9	25,100	16.8	23,200	15.2

GrowerSELECT® AirStorm™ 54" Fiberglass Fan Installation and Operation Manual
GrowerSELECT® AirStorm™ 54" Fiberglass Fan Warranty Information

*Shipping charges at checkout are an estimate only. You will be contacted with an accurate freight charge before your order is processed.

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
