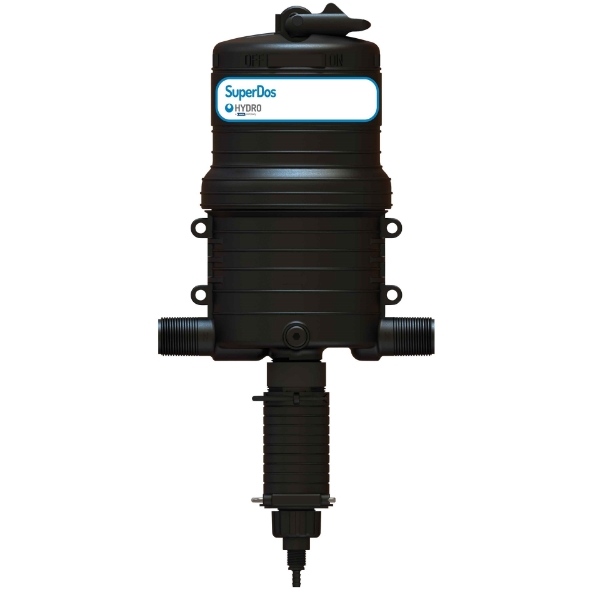

Water driven medicator injection unit capable of 0.15-30 GPM operating with adjustable mixing ratios between 1:500-1:40 (0.20-2.5%)
Manufacturer: Hydro Systems®
SKU: 113209
Manufacturer part number: 113209
Delivery date: 3-4 Weeks
$609.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The SuperDos operates without electricity to precisely inject liquid concentrates into a water supply line using fluid flow as the power source.

The SuperDos is designed with a patented internal mixing chamber that promotes homogeneous mixing, while segregating harsh chemicals from critical internal components.

This mid-high flow water-driven proportional injector offers an ideal alternative to traditional electric technology.

Flow Rate: 0.15-30 GPM (34-6800 L/hr)
Operating Pressure: 5-100 PSI (0.34-6.9 bar)
Injection Rate: 1:500-1:40 ratio (0.20-2.5%)


Features & Benefits:

  • Proprietary composite body for chemical compatibility and for mixing aggressive chemicals
  • Separate internal mixing chamber to prevent chemical contact with motor piston — for longer life and uniform mixing
  • Interchangeable lower ends with the ability to adjust ratios while in operation

Housing: Proprietary engineered composite material
Avg. dosing accuracy: +/- 5%
Repeatability: +/- 3% of Ratio
Fluid maximum temperature: 100º F (38º C)
Fluid minimum temperature: 34º F (1º C)
Maximum vertical suction of concentrate: 13 feet (3.6 m)
Maximum horizontal suction of concentrate: 49 feet (15.0 m)
Self-priming: Yes
Pipe Coupling: 1" NPT

SuperDos Datasheet (standard models)
SuperDos Maintenance Kits
SuperDos 30 Manual
SuperDos 30 Quick Start Guide
